Bowers & Wilkins CCM663 without grill

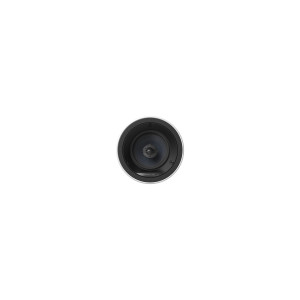

Bowers & Wilkins CCM663 – In Ceiling Speaker

Bowers & Wilkins

In Store Only – Please Call: 203-808-6991

(No reviews yet)
Current Stock:
Minimum Purchase:
2 units
Description

See nothing, hear everything

The CCM663 is a true high performance ceiling-mount speaker. The tweeter has a 25mm (1in) aluminium dome and its housing pivots for adjustable off-axis treble response. The bass/midrange driver’s die-cast chassis provides extra rigidity which results in a cleaner, faster bass, and a three-position EQ switch for a better off-axis response. The blue Aramid Fibre cone means that the unit is well hidden behind the grille but still produces a remarkably clear and dynamic sound. Incorporating QuickDogs™ and plug-and-play functionality it is quick and easy to install.

Best Used in Pairs for Single Stereo (L/R) Zones or as Dolby Atmos Height Channels in CI Home Theaters

Performance Series

Incorporating QuickDogs™ and plug-and-play functionality, Performance Series loudspeakers are quick and easy to install while still capable of delivering truly outstanding sound quality.

Bring your music home

Your home is as individual as the music you love, and so are your particular requirements. Bowers & Wilkins’ range of Integrated Solutions speakers delivers our world-famous sound quality with options to suit every type of home.

Hear music exactly as the artist intended

Our Integrated Solutions speakers are built by the same people, to the same standards, and with the same objectives, as our regular loudspeaker ranges. There’s only one difference: these speakers are nowhere to be seen.

True Sound

There’s nothing quite like experiencing the True Sound of a performance. At Bowers & Wilkins, our dedicated engineers develop and integrate the highest caliber of performance audio technology into our products. The result allows you to hear music and movies with the striking accuracy and realism of the original recording, with nothing added and nothing taken away.

Specifications

Net weight:
not provided by manufacturer

Dimensions:
Frame Diameter: 240mm (9.5in)
Depth (behind surface): 133mm (5.2in)
Cut-out Diameter: 202mm (8in)
Cut-out Height with PMK: n/a
Cut-out Width with PMK: n/a
Protrusion: 4mm (0.2in)

Drive units:
1x ø25mm (1in) Nautilus™ swirl loaded aluminium dome tweeter
1x ø150mm (6in) blue Aramid Fibre cone bass/midrange driver

Frequency range:
-6dB at 45Hz – 50kHz

Frequency response:
not provided by manufacturer

Sensitivity:
88dB (2.83V, 1m)

Technical features:
not provided by manufacturer

Harmonic Distortion:
not provided by manufacturer

Crossover:
2-way

Nominal Impedance:
8Ω, Minimum 4.5Ω

Recommended amplifier power:
25 – 130w

Preconstruction Bracket (sold separately):
PMK C6

Back Box (sold separately):
BB 6C

Grille finishes:
White

Warranty:
5 Years
