Klipsch Designer Series DS-160CSM – Stereo In Ceiling Speaker
Klipsch
$319.00
(No reviews yet)
Write a Review
Klipsch

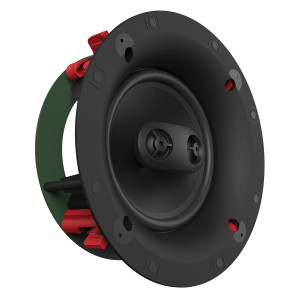

Klipsch Designer Series DS-160CSM – Stereo In Ceiling Speaker
Klipsch Designer Series: DS-160CSM
Offering the Klipsch Signature Horn-Loaded performance at an incredible value, the DS-160CSM brings dynamic, powerful, detailed sound to your distributed audio system for true stereo sound in spaces where two speakers aren’t possible.
- 2 Channel Stereo From a Single Speaker
- 6.5” Pivot Polypropylene woofer
- Dual 0.75” Silk Dome tweeter
- Patented Sky Hook® Tool-Free Installation System
- Bezel-Free Magnetic Grille
Highlights & Key Technologies
Horn Loaded Performance
Using the same Tractrix® horn technology and design principles of our premium architectural and box speaker lines, the all new Klipsch Designer series brings true Klipsch power and performance. With a dual voice coil 6.5” Polypropylene woofer and two .75” Silk Dome tweeters, the DS-160CSM brings dynamic, powerful, detailed sound to your distributed audio system - or true stereo sound in spaces where two speakers aren’t possible.
Patent Pending SKYHOOK™ Tool Free Installation
The exclusive installation system engages the dog legs automatically when the speaker is inserted into the cutout hole with a preset clamping force, eliminating the possibility of overtorquing. This fast, easy installation system reduces install time by up to 75%.
Bezel Free Magnetic Grille
A completely redesigned powercoated magnetic steel grille eliminates the bezel for seamless, pristine integration into the living space.
Details & Specifications
Using the same Tractrix® horn technology and design principles of our premium architectural and box speaker lines, the all new Klipsch Designer series brings true Klipsch power and performance. With a dual voice coil 6.5” Polypropylene woofer and two .75” Silk Dome tweeters, the DS-160CSM brings dynamic, powerful, detailed sound to your distributed audio system - or true stereo sound in spaces where two speakers aren’t possible.
Patent Pending SKYHOOK™ Tool Free Installation
The exclusive installation system engages the dog legs automatically when the speaker is inserted into the cutout hole with a preset clamping force, eliminating the possibility of overtorquing. This fast, easy installation system reduces install time by up to 75%.
Bezel Free Magnetic Grille
A completely redesigned powercoated magnetic steel grille eliminates the bezel for seamless, pristine integration into the living space.
Details & Specifications
Frequency Response: 77Hz - 20kHz +/- 3dB
High Frequency Driver: Dual .75" (1.9cm) Silk Dome Tweeters
Low Frequency Driver: 6.5” (16.51cm) Dual Voice Coil Polypropylene Woofer
Sensitivity: 91 dB @ 2.83V / 1m
Coverage Angle: 160°
Power Handling: 50W RMS / 200W RMS
Impedance: 8 Ohm Compatible
Enclosure Type: ABS/Infinite Baffle
Finish: Black Baffle/Frame, White Paintable Grille
Product Dimensions: 9.2” W x 9.2” H x 4.5” D (23.3cm H x 23.3cm W x 11.3cm D)
Mounting Depth: 4.34” (11.03cm)
Cutout Dimensions: 8.3” (21.1cm)
Product Weight: 7 lbs (3.18kg)
Included: Flat Paintable Magnetic Grille
Installation Kit: IK-650-C II (Sold Separately)
Fire Rated Enclosure: ME-650-C (Sold Separately)
Built From: 2017
Item Number: 1068517
High Frequency Driver: Dual .75" (1.9cm) Silk Dome Tweeters
Low Frequency Driver: 6.5” (16.51cm) Dual Voice Coil Polypropylene Woofer
Sensitivity: 91 dB @ 2.83V / 1m
Coverage Angle: 160°
Power Handling: 50W RMS / 200W RMS
Impedance: 8 Ohm Compatible
Enclosure Type: ABS/Infinite Baffle
Finish: Black Baffle/Frame, White Paintable Grille
Product Dimensions: 9.2” W x 9.2” H x 4.5” D (23.3cm H x 23.3cm W x 11.3cm D)
Mounting Depth: 4.34” (11.03cm)
Cutout Dimensions: 8.3” (21.1cm)
Product Weight: 7 lbs (3.18kg)
Included: Flat Paintable Magnetic Grille
Installation Kit: IK-650-C II (Sold Separately)
Fire Rated Enclosure: ME-650-C (Sold Separately)
Built From: 2017
Item Number: 1068517
UPC: 743878042351
