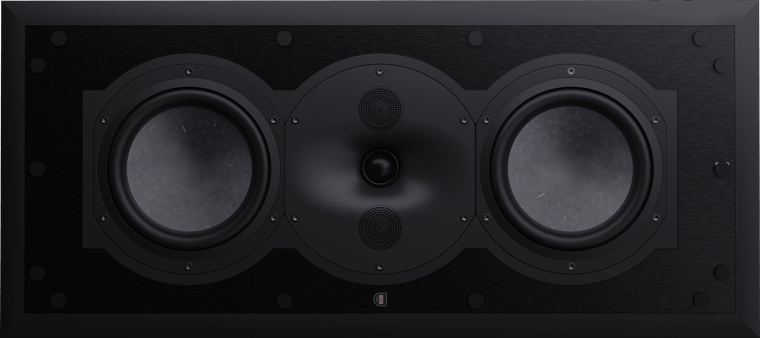

Perlisten R5i-C – In Wall Center Channel Speaker

Perlisten Audio R5i-C – In-Wall Center Channel Speaker

Based largely on the R5c (per datasheet; product page references the R5t) and adapted for in-wall center channel applications. The R5i-C delivers the next level in-wall performance with directivity control to even lower frequencies and timbre matching not only in the raw materials but in the critical frequency response, power response, and phase. A shallow 4" mounting depth and integral aluminum extrusion rear enclosure ensure consistent performance and minimal sound propagation to adjacent rooms. Sharing trickle-down technology from the flagship S-Series, the DPC-Array — here based on three 26mm silk domes — guarantees excellent directivity control and timbre matching with all R-Series speakers. The silk diaphragms were developed ground up, chosen specifically for their smooth, effortless representation of midrange and treble. The 165mm woofers are made from Perlisten's proprietary HPF pulp, two years in development, bringing new technology to one of the oldest materials used in loudspeaker design. All R-Series speakers share the same DPC-Array and benefit from Perlisten's unique timbre matching technique across the entire series.

• DPC-Array: (3) 26mm silk dome, directivity pattern control
• (2) 165mm HPF (Hybrid Pulp Formulation) diaphragm woofers
• 3-way acoustic suspension enclosure, integral aluminum extrusion rear enclosure
• 4Ω nominal / 3.3Ω minimum impedance
• Frequency Response (-10dB): 40–32kHz
• 89.4dB / 2.83v / 1.0m Sensitivity (2pi)
• Shallow 4" mounting depth
• THX Dominus and THX Ultra Certified
• Weight: 15.9 kg (35.0 lbs.)
• Made in China
• 5 Year Warranty

Highlights & Key Technologies

DPC-Array & Directivity Pattern Control
The R5i-C features Perlisten's proprietary DPC-Array, which controls mid-to-high frequencies using three 26mm silk dome tweeters, ensuring excellent directivity control and timbre matching with all R-Series speakers. The silk diaphragms were developed ground up, chosen specifically for their smooth, effortless representation of midrange and treble. All R-Series speakers share the same DPC-Array and benefit from Perlisten's unique timbre matching technique across the entire series — including timbre matching in the critical frequency response, power response, and phase. The DPC-Array patent is USA patent pending.

HPF Woofers
The R5i-C employs two 165mm woofers made from Perlisten's proprietary HPF (Hybrid Pulp Formulation) — a material combining long fiber hardwood, bamboo, and wool — used for predictable low-frequency performance, making them ideally suited for multi-channel systems.

In-Wall Enclosure & Installation
Based largely on the R5c (per datasheet; product page references the R5t) and adapted for in-wall applications, the R5i-C features a shallow 4" mounting depth and an integral aluminum extrusion rear enclosure that ensures consistent performance and minimal sound propagation to adjacent rooms. The R5i-C can be utilized as a center channel with an acoustically transparent screen or as a center near a screen in a media room. Dog leg mounting thickness ranges from a minimum of 0.437" (11.0mm) to a maximum of 1.750" (44.4mm).

THX Dominus & THX Ultra Certification
The R5i-C is certified THX Dominus and THX Ultra.

Details & Specifications

MODEL INFORMATION
Model: R5i-C
Certification: THX Dominus, THX Ultra
Available Finishes: Black baffle, white grille

DRIVER COMPLEMENT
DCP-Array: 26mm(3) Silk dome
Woofers: 165mm(2) HPF diaphragms

ENCLOSURE
Enclosure Alignment: 3-way acoustic suspension
Enclosure Construction: Integral aluminum extrusion rear enclosure

PERFORMANCE
Sensitivity (2pi): 89.4dB / 2.83v / 1.0m
Impedance: 4Ω nominal / 3.3Ω min
Response Linearity: 80–20kHz ±1.5dB window
Frequency Response (-10dB): 40–32kHz
Typical In Room bass extension: 34Hz
Recommended Amplifier Power: 50–250W RMS
SPL capability @1m (100–20kHz): 113.4dB peak; 111.0dB peak <3% - 2nd, 3rd Harmonics

INSTALLATION
Mounting depth: 4" (101.7mm)
Minimum dog leg mounting thickness: 0.437" (11.0mm)
Maximum dog leg mounting thickness: 1.750" (44.4mm)
Product dimensions (rear): 10.125" (257.0mm) x 24.566" (624.0mm)
Cut-out dimensions: 10.236" (260.0mm) x 24.685" (627.0mm)
Terminal protrusion: 13/16" (20.5mm)

PHYSICAL SPECIFICATIONS
Dimensions (HxWxD): 298 x 665 x 111mm / 11-3/4" x 26-3/16" x 4-3/8"
Mounting dimensions (HxWxD): 257 x 624 x 101.7mm / 10.1 x 24.6 x 4.0"
Overall height without grill: 26" (660.0mm)
Width with grill: 11-3/4" (298.0mm)
Grill frame projection: 3/8" (9.8mm)
Weight: 15.9 kg (35.0 lbs.)

WARRANTY
5 Year Warranty

ORIGIN
Made in China
