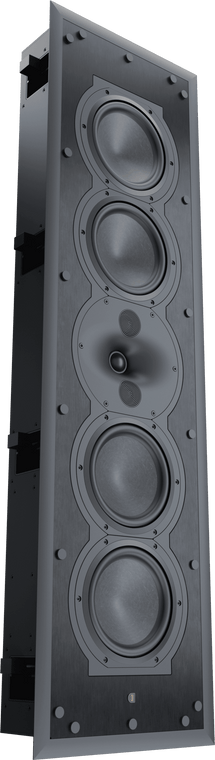

Perlisten R7i-LR – In Wall Speaker

Perlisten Audio R7i-LR – In-Wall Speaker

The R7i-LR is the pinnacle of the R-Series in-wall speakers, based largely on the R7t and adapted for in-wall applications. It delivers the same directivity control as the R7t, built into an all-aluminum cabinet just 111mm (4.4") deep. A shallow 4" mounting depth and integral aluminum extrusion rear enclosure ensure consistent performance and minimal sound propagation to adjacent rooms. Sharing trickle-down technology from the flagship S-Series, the DPC-Array — here based on three 26mm silk domes — guarantees excellent directivity control and timbre matching with all R-Series speakers. The silk diaphragms were developed ground up, chosen specifically for their smooth, effortless representation of midrange and treble. The 165mm woofers are made from Perlisten's proprietary HPF pulp, two years in development, bringing new technology to one of the oldest materials used in loudspeaker design. All R-Series speakers share the same DPC-Array and benefit from Perlisten's unique timbre matching technique across the entire series.

• DPC-Array: (3) 26mm silk dome, directivity pattern control
• (4) 165mm HPF (Hybrid Pulp Formulation) diaphragm woofers
• Acoustic suspension enclosure, integrated aluminum extrusion rear enclosure
• 4Ω nominal / 3.6Ω minimum impedance
• Frequency Response (-10dB): 42–32kHz
• 89.9dB / 2.83v / 1.0m Sensitivity
• Shallow 4" mounting depth
• THX Dominus Certified (surround); THX Ultra Certified (LCR)
• Weight: 23.1 kg (50.8 lbs.)
• Made in China
• 5 Year Warranty

Highlights & Key Technologies

DPC-Array & Directivity Pattern Control
The R7i-LR features Perlisten's proprietary DPC-Array, which controls mid-to-high frequencies using three 26mm silk dome tweeters, ensuring excellent directivity control and timbre matching with all R-Series speakers. All transducers are developed from the ground up by Perlisten's engineers, leveraging decades of research. Utilizing advanced COMSOL acoustic modeling, the DPC-Array is the result of 18 months of painstaking simulations and prototyping, developed in collaboration with companies in the USA and Sweden to bring modern material science to hi-fi. This tweeter/waveguide DPC-Array delivers exceptional accuracy, smoothness, and directivity control, enabling it to handle the critical vocal range and delicate treble with precision. All R-Series speakers share the same DPC-Array and benefit from Perlisten's unique timbre matching technique across the entire series. The DPC-Array is protected under U.S. Patent No. 12,047,738 B1.

HPF Woofers
The R7i-LR employs four 165mm woofers made from Perlisten's proprietary HPF (Hybrid Pulp Formulation) — a material combining long fiber hardwood, bamboo, and wool — used for predictable low-frequency performance, making them ideally suited for multi-channel systems.

In-Wall Enclosure & Installation
Based largely on the R7t, the R7i-LR is adapted for in-wall applications with a shallow 4" mounting depth and an integral aluminum extrusion rear enclosure that ensures consistent performance and minimal sound propagation to adjacent rooms. The cabinet is 111mm (4.4") deep and can be utilized as an LCR with an acoustically transparent screen or as an LR in a media room. Dog leg mounting thickness ranges from a minimum of 0.437" (11.0mm) to a maximum of 1.750" (44.4mm).

Details & Specifications

MODEL INFORMATION
Model: R7i-LR
Available Finishes: Matte black aluminum with white grille

DRIVER COMPLEMENT
DPC-Array: 26mm(3) Silk dome
Woofers: 165mm(4) HPF diaphragms

ENCLOSURE
Enclosure Alignment: Acoustic suspension
Enclosure Construction: Integral aluminum extrusion rear enclosure

PERFORMANCE
Sensitivity: 89.9dB / 2.83v / 1.0m
Impedance: 4Ω nominal / 3.6Ω min
Response Linearity: 80–20kHz ±2.0dB window
Frequency Response (-10dB): 42–32kHz
Typical In Room bass extension: 35Hz
Recommended Amplifier Power: 100–400W RMS
SPL capability @1m (100–20kHz): 115.9dB peak; 115.9dB peak <3% - 2nd, 3rd Harmonics

INSTALLATION
Mounting depth: 4" (101.7mm)
Minimum dog leg mounting thickness: 0.437" (11.0mm)
Maximum dog leg mounting thickness: 1.750" (44.4mm)
Product dimensions (rear): 10.125" (257.0mm) x 39.212" (996.0mm)
Cut-out dimensions: 10.236" (260.0mm) x 39.330" (999.0mm)
Terminal protrusion: 13/16" (20.5mm)

PHYSICAL SPECIFICATIONS
Dimensions (HxWxD): 1032.0 x 293.0 x 120.8mm / 40-5/8" x 11-9/16" x 4-3/8"
Width with grill: 11-3/4" (298.6mm)
Height with grill: 40-13/16" (1036.6mm)
Grill frame projection: 3/8" (9.6mm)
Weight: 23.1 kg (50.8 lbs.)

WARRANTY
5 Year Warranty

ORIGIN
Made in China
