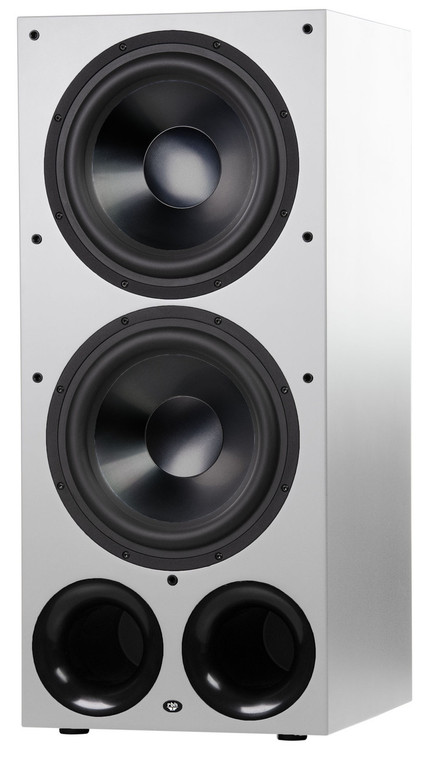

RBH Signature Reference 1212P-SF/R – Dual 12" Powered Subwoofer

RBH Sound 1212P-SF/R – Signature Reference Dual 12" Powered Subwoofer

Built to deliver copious amounts of extremely deep and powerful bass with precise control, the 1212P-SF/R powered subwoofer is not for the faint of heart. The 1212P-SF/R features two 12-inch long-throw aluminum cone subwoofers with a 2400 Watt class D amplifier. Designed for larger home cinema and listening environments, the 1212P-SF/R delivers an incredible sonic and tactile experience to every movie or music listening session.

• (2) 12" front firing reference aluminum drivers
• 2,400 watt Class D amplifier
• Frequency response: 18 Hz – 180 Hz (±3 dB)
• Vented cabinet via dual front firing ports
• HDF construction
• Made in USA
• Weight: 104 lbs (47.17 kg)
• 10 Year Limited Warranty
• 3 Year Limited Warranty (Amplifier Only)

Highlights & Key Features

Reference Aluminum Drivers
The 1212P-SF/R features two 12-inch (305 mm) reference aluminum cone long-throw subwoofer drivers. Available in black or silver aluminum finishes, these reference drivers provide extended frequency response, greater power handling and improved dynamic range. The dual-driver configuration delivers massive output and displacement for the deepest bass possible in larger home cinema and listening environments.

2,400 Watt DSP Amplifier
The built-in 2,400 watt Class D amplifier with programmed DSP options drives the dual 12" drivers to deliver frequency response down to 18 Hz (±3 dB). The DSP provides extensive software-based control including variable crossover frequency (40–180 Hz), variable crossover slope (6–48 dB/octave), phase control (0–180°) with delay control, and DSP mode switching. The amplifier accepts AC 100–240V ~50/60Hz for worldwide compatibility.

Connectivity
The amplifier panel features XLR inputs with an included RCA adapter for flexible source connection. An XLR LFE output is provided for daisy-chaining additional subwoofers or signal pass-through. The LFE input is DSP mode switchable.

Cabinet & Construction
The vented cabinet features dual front firing ports, designed for flexible cabinet installation and freestanding placement. Constructed from High Density Fiberboard (HDF), the cabinet is individually hand assembled and tested at RBH’s facility. Available in satin black or satin white paint finish with a matching black or white fabric magnetic grille (3/4" MDF).

SF Series Integration
The 1212P-SF/R is part of the RBH Signature Reference SF Series, which provides timbre matched options for multi-channel sound across all freestanding, bookshelf, on-wall and in-wall products in the SF, SV or SI Series.

Details & Specifications

MODEL INFORMATION
Model: 1212P-SF/R
Series: Signature Reference Series | Subwoofers

SYSTEM
System type: Vented, cabinet, powered
Drive units: (2) 12" (305 mm) reference aluminum cone subwoofer
Driver finish: Black or silver aluminum

FREQUENCY RESPONSE
Frequency response: 18 Hz – 180 Hz (±3 dB) with DSP plate amp

AMPLIFIER
Amplifier type: Class D
Amplifier power: 2,400 watts with customizable DSP
Voltage: AC 100–240V ~50/60Hz

CROSSOVER & PHASE
Crossover frequency: 40 Hz – 180 Hz (variable in software)
Crossover slope: 6 dB/octave – 48 dB/octave (variable in software)
Phase control: 0–180° + delay control (available in software)

INPUTS / OUTPUTS
LFE input: XLR, RCA (with adapter) / DSP mode switchable
LFE output: Yes, XLR

CABINET
Cabinet construction: High Density Fiberboard (HDF)
Finish: Satin black or satin white paint
Grille: Black or white fabric, magnetic (3/4" MDF)
Port configuration: Dual front firing

PHYSICAL SPECIFICATIONS
Finished dimensions (W × H × D): 15-3/4" × 35-15/16" × 18-1/16" (400 mm × 913 mm × 456 mm)
Weight: 104 lbs (47.17 kg)

WARRANTY
10 Year Limited Warranty (cabinet/components)
3 Year Limited Warranty (amplifier)

MANUFACTURER
Designed, engineered, tested and assembled in USA from American and imported parts
RBH Sound • 1604 W Hill Field Rd, Ste 100, Layton, Utah 84041
(801) 543-2200 • https://rbhsound.com
