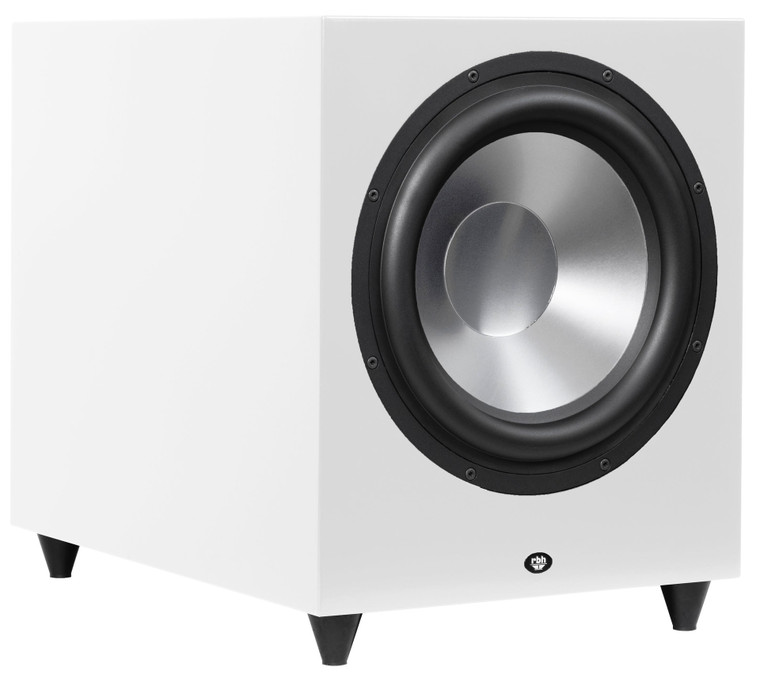

RBH Signature Reference 12N-SF/R – 12" Passive Subwoofer

RBH Sound 12N-SF/R – Signature Reference 12" Passive Subwoofer

The 12N-SF/R has all of the perks of the 12P-SF/R with the added benefit of customizing your experience with the amplifier of your choosing. Whether you go all out with the RBH DA-1202DSP amplifier or provide your own, the power is in your hands. Built to deliver copious amounts of deep and powerful bass with precise control in a manageable size, the 12N-SF/R is a welcome and conveniently placed addition to complete your home theater or any listening experience.

• Free standing passive design — external amplifier required (DA series recommended)
• (1) 12" front firing reference aluminum driver
• Frequency response: 26 Hz – 120 Hz (±3 dB); 22 Hz – 150 Hz (±3 dB) with DA series amplifier
• Sensitivity: 87 dB
• Impedance: 4 ohm
• Recommended amplifier power: 300 – 800 watts
• Vented cabinet via down-firing port
• HDF construction
• Made in USA
• Weight: 58.5 lbs (26.53 kg)
• 10 Year Limited Warranty

Highlights & Key Features

Reference Aluminum Driver
The 12N-SF/R features a single 12-inch (305 mm) reference aluminum cone long-throw subwoofer driver. Available in black or silver aluminum finishes, the reference driver provides extended frequency response, greater power handling and improved dynamic range. The down-firing port design combined with the reference driver delivers deep, powerful bass down to 26 Hz in a compact, manageable form factor.

Passive Design & Amplifier Compatibility
As a passive (non-powered) subwoofer, the 12N-SF/R requires an external amplifier. RBH recommends their DA-1202DSP amplifier, which unlocks extended bass response down to 22 Hz and extends the upper range to 150 Hz (±3 dB) with programmed DSP options. The 12N-SF/R has all the perks of the powered 12P-SF/R with the added benefit of customizing your experience with the amplifier of your choosing.

Cabinet & Construction
The vented cabinet features a down-firing port, providing a small footprint compared to output. Constructed from High Density Fiberboard (HDF), the cabinet is individually hand assembled and tested at RBH’s facility. Available in satin black or satin white paint finish with a matching black or white premium fabric magnetic grille (3/4" MDF). For complete bass coverage, two subs is best, which is easily done due to the compact size of the 12-SF/R series.

SF Series Integration
The 12N-SF/R is part of the RBH Signature Reference SF Series, which provides timbre matched options for multi-channel sound across all freestanding, bookshelf, on-wall and in-wall products in the SF, SV or SI Series.

Details & Specifications

MODEL INFORMATION
Model: 12N-SF/R
Series: Signature Reference Series | Subwoofers

SYSTEM
System type: Vented, cabinet, non-powered (passive)
Drive units: (1) 12" (305 mm) reference aluminum cone subwoofer
Driver finish: Black or silver aluminum
Sensitivity: 87 dB (2.83 V @ 1 meter)
Impedance: 4 ohm
Recommended power: 300 – 800 watts

FREQUENCY RESPONSE
Frequency response: 26 Hz – 120 Hz (±3 dB)
Frequency response when using DA series subwoofer amplifier: 22 Hz – 150 Hz (±3 dB)

AMPLIFIER
Amplifier type: Requires external amplification
Amplifier power: N/a

CROSSOVER
Crossover slope: 12 dB/octave

CABINET
Cabinet construction: High Density Fiberboard (HDF)
Finish: Satin black or satin white paint
Grille: Black or white premium fabric, magnet attached (3/4" MDF)
Port configuration: Down-firing

PHYSICAL SPECIFICATIONS
Finished dimensions (W × H × D): 15" × 18-11/16" × 21-3/16" (381 mm × 474 mm × 538 mm)
Weight: 58.5 lbs (26.53 kg)

WARRANTY
10 Year Limited Warranty

RECOMMENDED AMPLIFIERS
RBH DA-1202DSP

MANUFACTURER
Designed, engineered, tested and assembled in USA from American and imported parts
RBH Sound • 1604 W Hill Field Rd, Ste 100, Layton, Utah 84041
(801) 543-2200 • https://rbhsound.com
