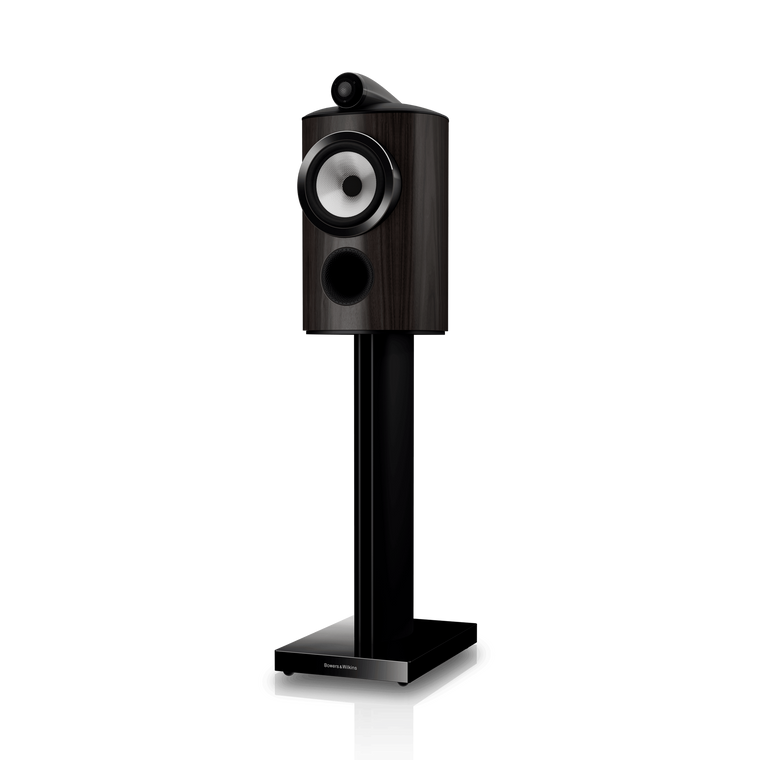

Bowers & Wilkins 805 D5 – Stand Mount Bookshelf Speaker

Bowers & Wilkins 805 D5 – Standmount Loudspeaker

The 805 D5 is an ideal choice for a smaller loudspeaker. Part of the new 800 Series Diamond, it is a two-way vented-box design pairing a Diamond dome tweeter in the Solid Body Tweeter-on-Top with a Continuum cone bass/midrange unit in a stiff, curved Matrix-braced cabinet.

• 1× ø25mm (1in) Diamond dome high-frequency
• 1× ø165mm (6.5in) Continuum™ cone FST bass/midrange
• 2-way vented-box system
• 8Ω nominal impedance (minimum 4.6Ω)
• 2-way crossover
• Bi-wire terminals
• 42Hz – 28kHz ±3dB Frequency Response
• 88dB Sensitivity
• Net weight: 16.4kg (36.0lbs)
• Made in UK
• 5 Year Warranty

Highlights & Key Technologies

Diamond Dome Tweeter & Solid Body Tweeter-on-Top
The 805 D5 carries a 25mm (1in) Diamond dome high-frequency unit, decoupled from the cabinet in the Solid Body Tweeter-on-Top. The tweeter housing features the new metal grille mesh design first debuted on the 800 D4 Signature, which significantly improves acoustic performance. A new trim ring design improves perceived quality by moving the sight lines to the side of the pod.

Continuum Cone Bass/Midrange
A single 165mm (6.5in) Continuum cone bass/midrange unit, fitted with an Anti-Resonance plug, handles the frequencies below the tweeter. The new mid and bass cloth grille design adopts a subtler aesthetic with lighter weight for easier handling.

Matrix Cabinet & Flowport
The drive units are mounted in a stiff, curved Matrix-braced cabinet loaded by Flowport in a two-way vented-box system. A refined top plate with smaller, more subtle edges derives its improved acoustic performance from the 800 D4 Signature.

Details & Specifications

TECHNICAL FEATURES
Diamond dome tweeter
Solid Body Tweeter-on-Top
Continuum™ cone FST™ midrange
Matrix™
Anti-Resonance plug
Flowport™

DESCRIPTION
2-way vented-box system

DRIVE UNITS
1× ø25mm (1in) Diamond dome high-frequency
1× ø165mm (6.5in) Continuum™ cone bass/midrange

CROSSOVER
2-way

PERFORMANCE
Frequency range: –6dB at 34Hz – 35kHz
Frequency response: 42Hz – 28kHz ±3dB (from reference axis)
Sensitivity: 88dB (on axis at 2.83Vrms at 1m)
Harmonic distortion (2nd and 3rd harmonics, 90dB, 1m on axis): <1% 90Hz – 20kHz; <0.3% 120Hz – 8kHz
Nominal impedance: 8Ω (minimum 4.6Ω)
Recommended amplifier power: 50W – 1000W into 8Ω on unclipped programme
Max. recommended cable impedance: 0.1Ω

CONNECTIVITY
Bi-wire terminals

DIMENSIONS
Height: 439mm (17.3in) including tweeter
Width: 241mm (9.5in) cabinet only
Depth: 322mm (12.7in) cabinet only; 363mm (14.3in) including grille and terminals
Net weight: 16.4kg (36.0lbs)

FINISHES
Cabinet: Stealth Black, Warm White, Light Walnut, Dark Walnut
Grille: Black (Stealth Black and Dark Walnut); Grey (Warm White and Light Walnut)

MANUFACTURING & WARRANTY
Made in UK
5 Year Warranty
