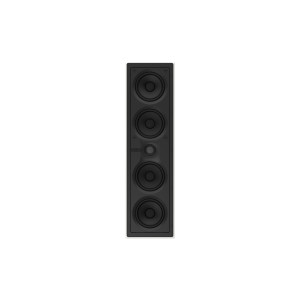

Bowers & Wilkins CWM 7.5 S2 – In Wall Speaker

Bowers & Wilkins
Availability:
In Store Only – To Purchase, Please Call: 203-808-6991
$846.30
(No reviews yet)
Current Stock:

See nothing, hear everything

A highly versatile in-wall speaker with thrilling sound, the CWM7.5 shares the acoustic configuration of the 707 S2 and like its sibling, houses a 130mm (5in) bass/mid-range Continuum cone driver plus a 25mm (1in) Carbon Dome tweeter, coupled to a forward-firing Flowport for outstanding bass response from a relatively small footprint. It has a critically formed baffle constructed from glass reinforced ABS plus its own integrated backbox, ensuring retrofittable installation plus optimum performance. It’s an outstanding performer when used in stereo or multi-room installations, and is equally at home as the rear speaker in a larger theatre application.

Reference Series

Featuring advanced technologies utilized in our high-performance loudspeakers, our Reference Series in-wall and in-ceiling loudspeakers are incredibly discrete yet capable of delivering highly accurate sound.

Bring your music home

Your home is as individual as the music you love, and so are your particular requirements. Bowers & Wilkins’ range of Integrated Solutions speakers delivers our world-famous sound quality with options to suit every type of home.

Hear music exactly as the artist intended

Our Integrated Solutions speakers are built by the same people, to the same standards, and with the same objectives, as our regular loudspeaker ranges. There’s only one difference: these speakers are nowhere to be seen.

True Sound

There’s nothing quite like experiencing the True Sound of a performance. At Bowers & Wilkins, our dedicated engineers develop and integrate the highest caliber of performance audio technology into our products. The result allows you to hear music and movies with the striking accuracy and realism of the original recording, with nothing added and nothing taken away.

Specifications

Net weight:
3.8kg (8.38 lb)

Dimensions:
Frame Height: 356mm (14in)
Frame Width: 212mm (8.5in)
Depth (behind surface): 102mm (4in)
Cut-out Height: 331mm (13in)
Cut-out Width: 187mm (7.4in)
Cut-out Height with PMK: 336mm (13.2in)
Cut-out Width with PMK: 192mm (7.6in)
Reservoir box height: 385mm (15.2in)
Reservoir box width: 181mm (7.1in)
Protrusion: 7mm (0.28in)

Drive units:
1x ø25mm (1in) Carbon Dome tweeter
1x ø130mm (5in) Continuum cone bass/midrange driver

Frequency range:
-6dB at 43Hz and 33kHz

Frequency response:
45Hz - 28kHz ±3dB

Sensitivity:
86dB spl (2.83Vrms, 1m)

Technical features:
Carbon Dome tweeter
Continuum mid/bass
Flowport

Harmonic Distortion:
2nd and 3rd harmonics (90dB, 1m)
<1% 90Hz - 33kHz
<0.5% 120Hz - 33kHz

Crossover:
2-way

Nominal Impedance:
8Ω (minimum 3.8Ω)

Recommended amplifier power:
25W - 150W into 8Ω on unclipped programme

Preconstruction Bracket (sold separately):
PMK 7.5W

Grille finishes:
White

Warranty:
5 Years
