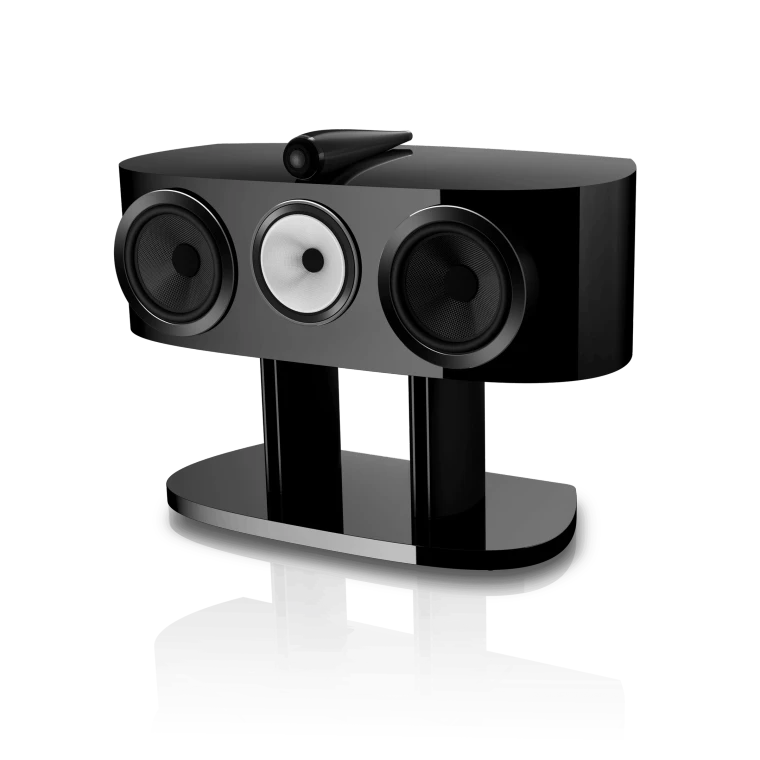

Bowers & Wilkins HTM81 D5 – Center Channel Speaker

Bowers & Wilkins HTM81 D5 – Centre Channel Loudspeaker

A three-way centre channel for use with 802 and 801 D5. Part of the new 800 Series Diamond, the HTM81 D5 is a three-way vented-box design built around a Diamond dome tweeter in the Solid Body Tweeter-on-Top, a Continuum cone FST midrange, and a pair of Aerofoil bass cones in a stiff, curved Matrix-braced cabinet.

• 1× ø25mm (1in) Diamond dome high-frequency
• 1× ø150mm (6in) Continuum™ cone FST™ midrange
• 2× ø200mm (8in) Aerofoil™ bass
• 3-way vented-box system
• 8Ω nominal impedance (minimum 3.0Ω)
• 3-way crossover
• Bi-wire terminals
• 28Hz – 28kHz ±3dB Frequency Response
• 90dB Sensitivity
• Net weight: 33.4kg (73.5lbs)
• Made in UK
• 5 Year Warranty

Highlights & Key Technologies

Diamond Dome Tweeter & Solid Body Tweeter-on-Top
The HTM81 D5 carries a 25mm (1in) Diamond dome high-frequency unit, decoupled from the cabinet in the Solid Body Tweeter-on-Top. The tweeter housing features the new metal grille mesh design first debuted on the 800 D4 Signature, which significantly improves acoustic performance. A new trim ring design improves perceived quality by moving the sight lines to the side of the pod.

Continuum Cone FST Midrange
Midrange is handled by a 150mm (6in) Continuum cone FST unit fitted with an Anti-Resonance plug and Biomimetic Suspension. The new mid and bass cloth grille design adopts a subtler aesthetic with lighter weight for easier handling.

Aerofoil Bass Cones & Flowport
Low frequencies are produced by two 200mm (8in) Aerofoil bass cones loaded by Flowport in a three-way vented-box system.

Matrix Cabinet
The drive units are mounted in a stiff, curved Matrix-braced cabinet. A refined top plate with smaller, more subtle edges derives its improved acoustic performance from the 800 D4 Signature.

Details & Specifications

TECHNICAL FEATURES
Diamond dome tweeter
Solid Body Tweeter-on-Top
Continuum™ cone FST™ midrange
Anti-Resonance plug
Biomimetic Suspension
Matrix™
Aerofoil™ bass cones
Flowport™

DESCRIPTION
3-way vented-box system

DRIVE UNITS
1× ø25mm (1in) Diamond dome high-frequency
1× ø150mm (6in) Continuum™ cone FST™ midrange
2× ø200mm (8in) Aerofoil™ bass

CROSSOVER
3-way

PERFORMANCE
Frequency range: –6dB at 20Hz – 35kHz
Frequency response: 28Hz – 28kHz ±3dB (from reference axis)
Sensitivity: 90dB (on axis at 2.83Vrms at 1m)
Harmonic distortion (2nd and 3rd harmonics, 90dB, 1m on axis): <1% 90Hz – 20kHz; <0.3% 100Hz – 8kHz
Nominal impedance: 8Ω (minimum 3.0Ω)
Recommended amplifier power: 50W – 1000W into 8Ω on unclipped programme
Max. recommended cable impedance: 0.1Ω

CONNECTIVITY
Bi-wire terminals

DIMENSIONS
Height: 334mm (13.2in) including tweeter
Width: 846mm (33.3in) cabinet only
Depth: 363mm (14.3in) including grille and terminals
Net weight: 33.4kg (73.5lbs)

FINISHES
Cabinet: Stealth Black, Warm White
Grille: Black (Stealth Black); Grey (Warm White)

MANUFACTURING & WARRANTY
Made in UK
5 Year Warranty
