IsoAcoustics Gaia Titan Series Speaker Isolator – Single or Pack of 4
$239.00 - $1,399.99
IsoAcoustics
IsoAcoustics Gaia Series Speaker Isolator – Single or Pack of 4
IsoAcoustics
$499.99
(No reviews yet)
Write a Review
IsoAcoustics
IsoAcoustics Gaia Series Speaker Isolator – Single or Pack of 4
Iso Acoustics – GAIA I / GAIA 1
Single: ISOGAIA1DC1
4 Pack: ISOGAIA1DC4
Provides improved sound clarity and openness for floor standing speakers and subwoofers. 220 lbs (100KG) Max.
About GAIA 1 speaker isolators
GAIA I isolators provide improved sound clarity and openness for floor standing speakers and subwoofers weighing 220 lbs (100KG) or less.
GAIA I isolators are finished with a machined stainless steel housing with an elegant dark chrome finish. Incorporating IsoAcoustics patented design principles, the GAIA I provides a high degree of isolation while resisting lateral movement and oscillations to maintain alignment with the listening position. Internal reflections from the hard-supporting surface are attenuated resulting in greater sound clarity and openness. The GAIA I will reveal clarity and openness from your speakers like you’ve never heard.
The sound stage blossoms to open up a three-dimensional image of natural, spatial sound.

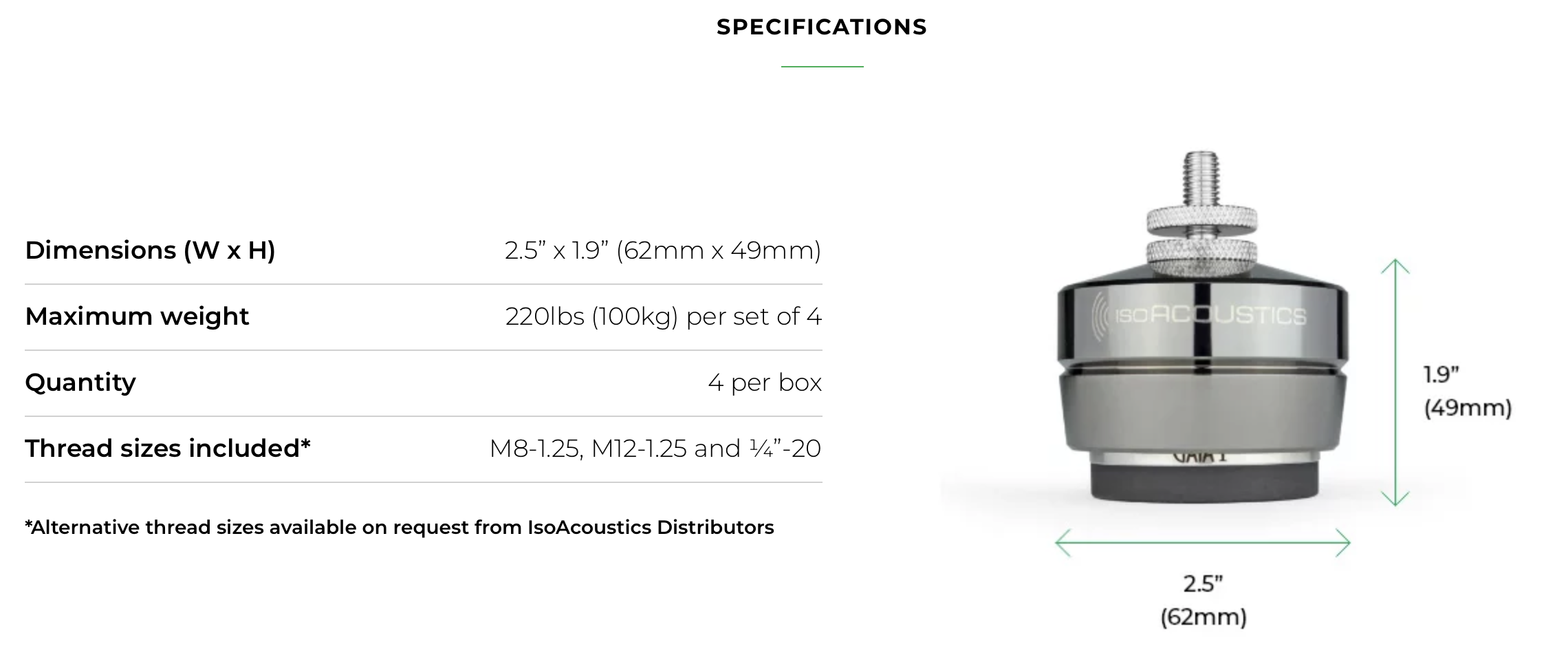

GAIA I SPECIFICATIONS
Dimensions (W x H)
2.5” x 1.9” (62mm x 49mm)
Maximum weight
220lbs (100kg) per set of 4
Thread sizes included*
M8-1.25, M12-1.25 and ¼”-20
*Alternative thread sizes available on request from IsoAcoustics Distributors
Iso Acoustics GAIA II / Gaia 2
Single: ISOGAIA2DC1
4 Pack: ISOGAIA2DC4
Provides improved sound clarity and openness for floor standing speakers and subwoofers. 121 lbs (55KG) Max.
About GAIA II speaker isolators
GAIA II is designed for floor standing speakers and subwoofers weighing up to 121 lbs (55Kg). Finished in an elegant machined dark chrome metal housing, the GAIA II incorporates IsoAcoustics’ patented design principles to deliver extraordinary acoustic results. GAIA II provides a high degree of isolation while resisting lateral movement and oscillations to maintain alignment with the listening position. Internal reflections from the hard-supporting surface are attenuated resulting in greater sound clarity and openness.
The sound stage blossoms to open up a three-dimensional image of natural, spatial sound.
Designed for floor standing speakers weighing up to 121 lbs or 55kg, the GAIA II will provide more openness and clarity, while reducing structural borne noise.
GAIA II SPECIFICATIONS
Dimensions (W x H)
2” x 1.7” (51mm x 43mm)
Maximum weight
121lbs (55kg) per set of 4
Thread sizes included*
M6-1.0, M8-1.25 and ¼”-20
*Alternative thread sizes available on request from IsoAcoustics Distributors
Iso Acoustics GAIA III / Gaia 3
Single: ISOGAIA3DC1
4 Pack: ISOGAIA3DC4
Provides improved sound clarity and openness for floor standing speakers and subwoofers. 70 lbs (32KG) Max.
About GAIA III speaker isolators
Crafted with the vision of providing extraordinary acoustic performance, the GAIA III is the union of aesthetic visual design and acoustic engineering. The small compact design delivers unbelievable acoustic isolation that will bring out clarity and openness from your speaker like you’ve never heard.
The sound stage blossoms to open up a three-dimensional image of natural, spatial sound.
Designed for floor standing speakers and subwoofers weighing up to 70 lbs (32 KG), the GAIA III will provide more openness and clarity. Structural borne noise is greatly reduced while internal reflections from the hard-supporting surface are attenuated resulting in greater sound clarity and openness.

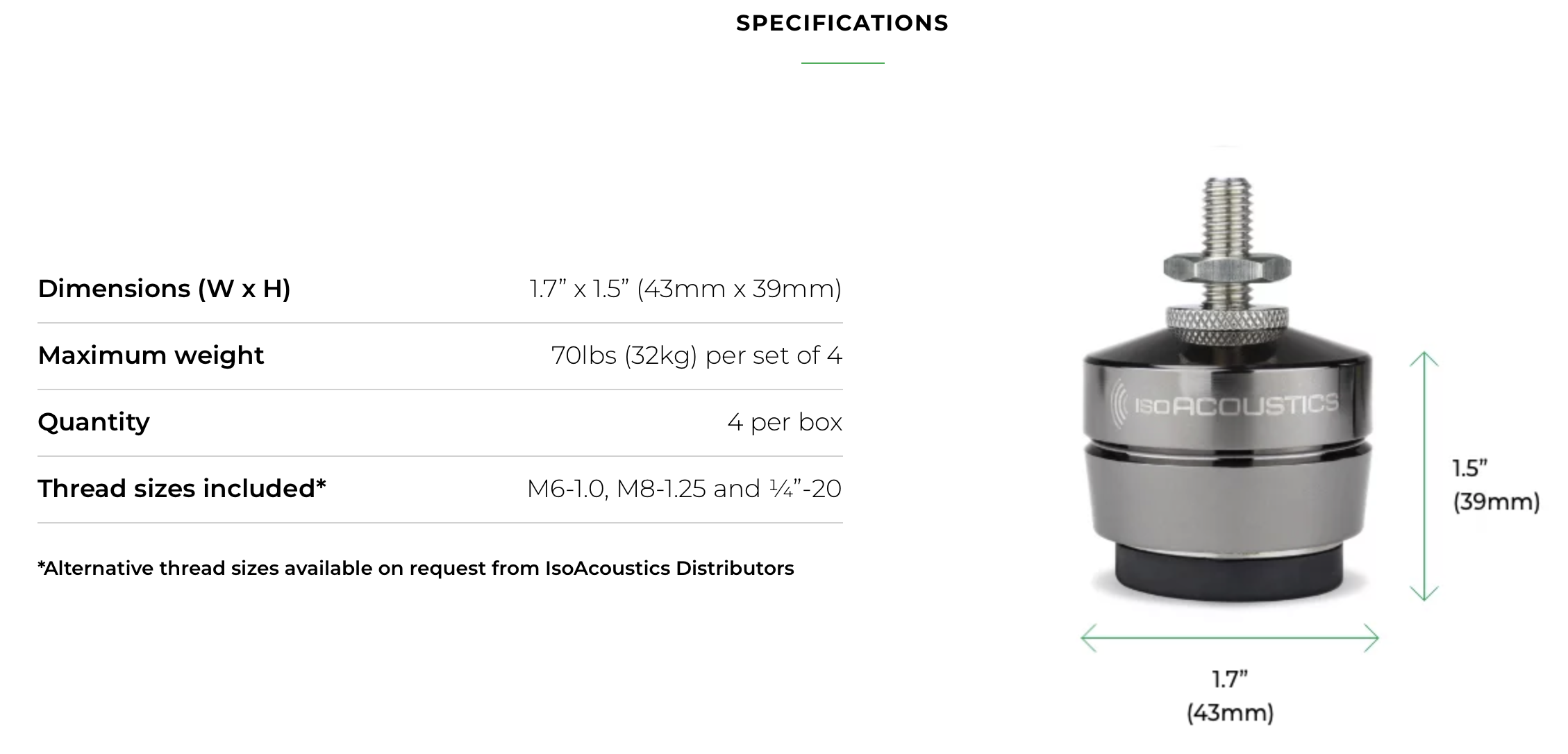

GAIA III SPECIFICATIONS
Dimensions (W x H)
1.7” x 1.5” (43mm x 39mm)
Maximum weight
70lbs (32kg) per set of 4
Quantity
4 per box (also available as single unit)
Thread sizes included*
M6-1.0, M8-1.25 and ¼”-20
*Alternative thread sizes available on request from IsoAcoustics Distributors
How to install GAIA isolators (I, II, and III)
Optimal results are achieved by installing the GAIA isolators with the logo facing the listening position, or rotated 180 degrees, to align the isolators with the speaker’s motive forces. GAIA provides a high degree of isolation while resisting lateral movement and oscillations to maintain alignment with the listening position. Lift and place the speakers into position as the GAIA lower isolators will adhere to the supporting surface.
The GAIA’s are threaded into the base of the speaker or subwoofer to replace the existing spikes or feet. Threading the GAIA’s into the base of the speaker creates a strong connection with the speaker. With the top of the GAIA housing connected with the speaker and the bottom of the GAIA connected to the supporting surface, all of the energy is then managed by the GAIA’s internal isolator.
The GAIA I includes thread adaptors for sizes M8-1.25, M12-1.25 and ¼”-20. Alternative thread size adaptors are available upon request through IsoAcoustics distributors.
The GAIA II includes thread adaptors for sizes M6-1.0, M8-1.25 and ¼”-20. Alternative thread size adaptors are available upon request through IsoAcoustics distributors.
The GAIA III includes thread adaptors for sizes M6-1.0, M8-1.25 and ¼”-20. Alternative thread size adaptors are available upon request through IsoAcoustics distributors.
