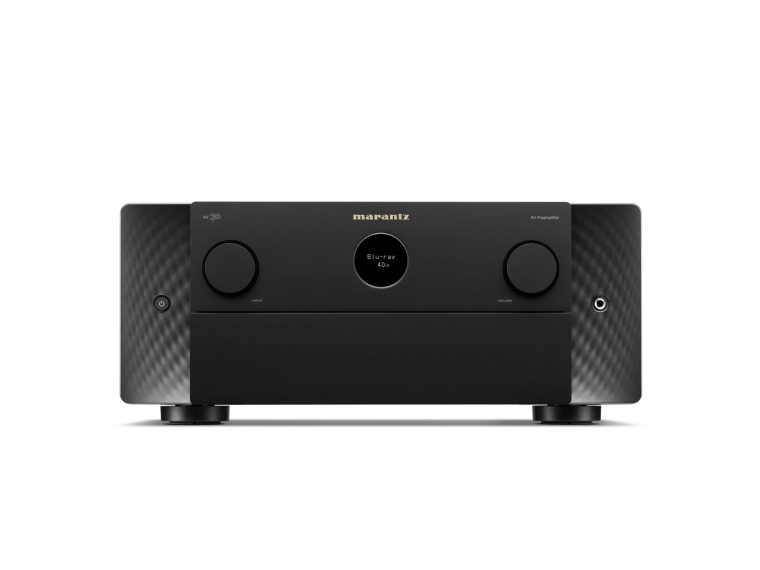

Marantz AV 30 – 11.4-Channel Balanced AV Preamplifier Powered by HEOS™

Elevated Listening Begins Here
AV 30 is engineered to bring exceptional cinema sound into your home. Advanced Marantz technology and expert craftsmanship ensure your entertainment is always delivered with powerful precision—from an elegant, timeless design.

Exceptional Performance
Enjoy every movie moment with immersive realism and lifelike detail. AV 30 delivers an outstanding theater experience—in your home.

Unlimited Flexibility
The 11.4-channel onboard processing supports a wide range of speaker configurations. Perfect for all forms of immersive audio suitable for even large home theater systems.

Technology Leader
AV 30 comes packed with support for the latest high-resolution movie formats, plus 8K video compatibility, room optimization, and Powered by HEOS™ technology to simplify and elevate your listening.

Timeless Design
A modern expression of timeless design principles, AV 30 features the iconic Marantz porthole, premium materials, and subtle sidelights that illuminate the front panel.

Details & Specifications

MULTICHANNEL SURROUND
Max. Number of Processing (Pre-Amp) Channels: 11.4
DTS: DTS-HD Master Audio, DTS:X, DTS Virtual:X, DTS Neural:X
Dolby: Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Surround
IMAX: IMAX Enhanced
Auro 3D / 360 Reality Audio / MPEG H: Yes / Yes / Yes
Multichannel Stereo: Yes

SOUND ENHANCEMENTS
Copper-Plated Chassis / Toroidal Power Transformer: Yes / Yes
Current Feedback Topology / Hyper Dynamic Amplifier Modules (HDAM): Yes / Yes (HDAM-SA2)
Pure Direct / Gold-Plated RCA Terminals: Yes / Yes
Clock Jitter Reducer: Yes
Dirac Live Upgradability: Yes
Compressed Audio Enhancer: MDAX2: Yes
Audyssey Dynamic EQ / Dynamic Volume / Audyssey LFC: Yes / Yes / Yes
Audyssey: MultEQ XT32
Auto Speaker Setup by Microphone: Audyssey MultEQ XT32, Dirac Live (Upgrade)
Variable Cross Over / Optimized Bass Redirection / Bass Sync: Yes / Yes / Yes

NETWORK
Wi-Fi / Bluetooth / Ethernet: Yes / Yes / Yes
HEOS Multi-Room and Streaming: Yes
Bluetooth Retransmit for Bluetooth Headphones: Yes
Apple HomePod: Yes
Lossy Formats: MP3, WMA, AAC
Lossless Formats: FLAC, FLAC HD 192/24, ALAC, ALAC 192/24, WAV, WAV 192/24
DSD Audio Streaming: Yes (up to DSD5.6)
Gapless Playback: FLAC, ALAC, WAV, DSD
TuneIn / AirPlay 2 / Spotify: Yes / Yes / Yes
Roon-Ready: Yes
Other Streaming Services: Amazon Music / TIDAL / Deezer / Napster / SoundCloud
Compatible with Remote App for Smartphones: Marantz AVR Remote
Compatible with Remote App for Tablets: Android / iOS / Amazon Kindle

HDMI
Total HDMI Inputs: 7
HDCP 2.3 Support: Yes
HDMI Outputs: Main / Zone: 2 / 1
HDMI Upscaling: 1080p/4K to 8K
GUI Overlay on HDMI: Yes
HDMI 2.1: 8K/60Hz AB / 4K/120Hz AB: Yes / Yes
8K/60Hz AB / 4K/120Hz AB Pass-Through In/Out: 7 / 2 (up to 40 Gbps)
HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR: Yes / Yes / Yes / Yes / Yes
Enhanced ARC: Yes
ALLM (Auto Low Latency Mode) Pass-Through for Gaming: Yes
Variable Refresh Rate / Quick Frame Transport: Yes / Yes
HDMI Pass-Though in Standby Mode: Yes
DSD Audio Capability: Yes
Auto LipSync: Yes

INPUTS/OUTPUTS
Composite In / Out: 2 / 0
Component In / Out: 1 / 0
HDMI In / Out: 7 / 3
Multi-Room Video Out: Video / HDMI: No / Yes
Analogue In: 6 (1× XLR)
Phono (MM) In: Yes
Digital In: Optical / Coaxial: 2 / 2
Multi-Room Out: Analog / Digital: 2 / 0
Multichannel Pre-Amp Out: Yes (11.4 RCA, 11.4 XLR)
Subwoofer Out: 4 (independent)
Speaker A / B: Assignable Pre-Out
Bi-Amp Drive: Assignable Pre-Out
Front USB Input / USB Audio: Yes / Yes
USB Power Supply (Rear): Yes
AM/FM Tuner: Yes

MULTI-ROOM
HEOS Multi-Room Integrated: Yes
HEOS Link Compatibility: IR/ IP: Yes / Yes
Multi-Room Zones: 3
Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analogue: Yes (2 ch) / Yes (2 ch) / Yes / Yes
Zone Audio Output: Speaker / Pre-Out: No / Yes
Zone HDMI Output from HDMI Source: Yes
IP Control / RS232 Control / Web Control / App Control: Yes / Yes / Yes / Yes
IR Flasher In / Marantz Remote Bus: Yes / Yes
DC Trigger Output: 3
HDMI Diagnostics: Yes

OTHERS
Front Display: 2-Line FLD, Port Hole OLED
Graphic User Interface: Modern HD GUI
GUI Languages: 9
Setup Assistant / Smart Select: Yes / Yes
Firmware Update by Network / USB: Yes / Yes
Auto Power Off / Sleep Timer: Yes / Yes

GENERAL
Metal Front Panel: Yes
System Remote Control: RC053SR
Backlit: Yes
Power Consumption: 80 W
Standby Consumption: 0.2 W
CEC Standby Consumption: 0.5 W
Network Standby Consumption: 2.0 W
Maximum Dimensions - Antenna, Horizontal (W × D × H): 17.4" × 16.3" × 7.5" (442 mm × 414 mm × 191 mm)
Maximum Dimensions - Antenna, Vertical (W × D × H): 17.4" × 16.3" × 10.0" (442 mm × 414 mm × 254 mm)
Maximum Dimensions - w/o Antenna (W × D × H): 17.4" × 15.6" × 7.5" (442 mm × 396 mm × 191 mm)
Weight: 24.5 lbs (11.1 kg)
What’s in the Box: Main unit, remote control, batteries, AM/FM antennas, wire labels, quick start guide, Audyssey microphone, cardboard microphone stand, 2 External Detachable Antenna, AC cord
UPC Code: 747192143817
Limited Warranty (United States and Canada): 5-year
