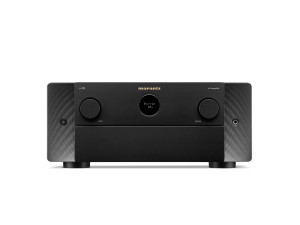

Marantz AV7706

Marantz AV7706 – 11.2 AV Processor

Marantz
$3,199.00
(No reviews yet)
Shipping:
Free Shipping
Current Stock:
Adding to cart… The item has been added
Description

11.2Ch 8K Ultra HD AV Surround Pre-Amplifier with HEOS® Built-in and Voice Control

Featuring 11.2 channel XLR and RCA pre-outs, the Marantz AV7706 supports all 3D audio formats including Dolby Atmos®, Dolby Atmos Height Virtualization, DTS:X®, DTS Virtual:X™, IMAX Enhanced®, and Auro-3D®. Enjoy audiophile-quality music playback with exceptional quality thanks to Marantz-proprietary HDAM modules and stream from Amazon Music HD, Pandora, Spotify, TIDAL, Deezer, and more with HEOS® Built-in technology, and voice control.

  • 11.2 channel XLR pre-out: 11.2 channel RCA pre-out
  • 8k/60Hz and select 4K/120Hz* pass-through support for every entertainment need: 8 HDMI inputs (incl. 1 front) with full HDCP 2.3 support; 3 HDMI outputs (incl. Zone 2)
  • With 8K/60Hz pass-through and upscaling, Dynamic HDR and Quick Media Switching (QMS), enjoy the smoothest, crystal clear picture quality available
  • With select 4K/120Hz* pass-through, Variable Refresh Rate (VRR), Auto Low Latency Mode (ALLM) and Quick Frame Transport (QFT), experience gaming thrills with amazing imaging with reduced lag and tearing
  • The latest HDR format support including HDR10, HDR10+, HLG, Dolby Vision, 4:4:4 color resolution and BT.2020, as well as Dynamic HDR provides exceptional brightness, clarity, and contrast for miraculous picture quality
  • Advanced video processing with analog to HDMI conversion; SD to HD/8K upscaling
  • Dolby Atmos®, Dolby Atmos Height Virtualization Technology, DTS:X®, DTS Virtual:X™, IMAX® Enhanced, and Auro-3D® processing for exceptional listening in all your favorite audio styles
  • eARC (Enhanced Audio Return Channel) supports the most advanced surround and object-based audio formats via single HDMI connection between AVRs and compatible TVs
  • Stream music from Internet Radio, Spotify Connect, Pandora, SiriusXM, Amazon Music HD, TIDAL, Deezer and more with Bluetooth, AirPlay 2 and HEOS® built-in
  • Built-in Wi-Fi with 2.4GHz/5GHz dual band support
  • Enjoy multi-room whole-home audio streaming with HEOS® Built-in technology
  • Simply use your voice to control your preferred voice assistant like Amazon Alexa, Google Assistant, Apple Siri and Josh.ai
  • Decodes ALAC, FLAC and WAV lossless files up to 24-bit/192-kHz; DSD 2.8MHz and 5.6MHz tracks — enjoy your music exactly as the artist intended
  • Marantz proprietary HDAM circuit boards, Current Feedback circuitry, 32-bit D/A converters, and Hybrid PLL Clock Jitter Reducer for more detailed, dynamic sound
  • Suite of Audyssey room correction software: Audyssey MultEQ XT32, Dynamic Volume and Dynamic EQ, LFC, and Sub EQ HT
  • Third-party integration and IR remote control, RS-232C serial port, and custom install support
  • Seamless out-of-the-box experience with Quick Start Guide, guided Setup Assistant, and Marantz AVR Remote App
  • Tuned by Marantz Sound Master

Details & Specifications

Multichannel Surround
DTS Neo:X / DTS Neural:XNo / Yes
DTS Virtual:X: Yes
IMAX Enhanced: Yes
Dolby TrueHD / Dolby Atmos / Dolby Atmos Height Virtualization: Yes / Yes / Yes
Dolby ProLogic Ilz / Dolby Surround: No / Yes
Auro 3D: Yes
360 Reality Audio / MPEG H: No / No
Audyssey DSX: No
Multichannel Stereo: Yes
Max Number of Processing (Preamp) Channels: 11.2

Sound Enhancements
Copper Plated Chassis: No
Power Transformer: Toroidal / EI: No / Yes
Current Feedback Topology: Yes
Hyper Dynamic Amplifier Modules (HDAM): Yes
Pure Direct: Yes
Gold plated RCA terminals: Yes
Clock Jitter Reducer: Yes
Audyssey: MultEQ XT32
Audyssey Dynamic EQ / Dynamic Volume: Yes / Yes
Audyssey LFC: Yes
Dirac Live upgradability: No
Compressed Audio Enhancer: MDAX2: Yes

Network
HEOS Multi-room and Streaming: Yes
Bluetooth Re-transmit for Bluetooth headphones: No
Network Audio Sharing: Yes
Lossy formats: MP3 / WMA / AAC: Yes / Yes / Yes
Lossless formats: FLAC / ALAC / WAV: Yes / Yes / Yes
Lossless formats: FLAC HD 192/24 / WAV 192/24 / ALAC 192/24: Yes / Yes / Yes
DSD Audio Streaming: Yes (2.8/5.6MHz)
FLAC HD 192/24: Yes
WAV 192/24: Yes
ALAC 192/24: Yes
Gapless Playback: Yes (FLAC, WAV, ALAC, DSD)
AirPlay Audio Streaming: Yes (AirPlay2)
Internet radio: Yes (TuneIn)
Streaming Services: Spotify Connect / Amazon Music HD / Amazon Music / TIDAL / Deezer / iHeart Radio / Napster / Soundcloud / Mood Mix / Pandora
Roon Tested: Yes
Compatible with Remote APP for Smart Phones: Marantz AVR Remote
Compatible with Remote APP for Tablets: Android / iOS / Amazon Kindle
Ethernet Ports: Yes
Wi-Fi: Yes
Bluetooth: Yes

HDMI
HDMI Inputs: Back / Front: 7 / 1
HDCP2.3 support: No
HDMI Outputs: Main / Zone: 2 / 1
Video Conversion Analog -> HDMI: Yes
Analogue to HDMI scaling: 480i/576i up to 8K 60/50
HDMI to HDMI Scaling: up to 8K 60/50
GUI Overlay on HDMI: Yes
HDMI 2.1: No
Enhanced ARC: Yes
3D Signal Pass-Through: Yes
4K Signal Pass-Through / Scaling / GUI Overlay: Yes / Yes / Yes
HDMI Pass-Through in Standby Mode: Yes
Picture Adjust / Noise Reduction: Yes / Yes
CEC: Yes
DSD Audio Capability: Yes
Audio Return Channel: Yes
Auto LipSync: Yes

Multi-Room CI
HEOS Multi-Room Integrated: Yes
HEOS Link Compatibility: IR/ IP: Yes / Yes
Multi-Room Zones: 3
Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog: Yes (2ch) / Yes (2ch) / Yes / Yes
Zone Audio Output: Speaker / Preout: No / Yes
Zone HDMI Output from HDMI Source: Yes
IR Flasher In: Yes
Marantz Remote Bus: Yes
DC Trigger Output: 2
HDMI Diagnostics: Yes

Others
Auto Speaker Setup by Microphone: Audyssey MultEQ XT32
Front Display: 2 line FLD + port hole
Graphic User Interface - GUI: Advanced
ISF Certification: Yes
GUI Languages: 3
Smart Select: Yes
Firmware Update by Network / USB: Yes / Yes
Variable Cross Over: Yes
Optimized Bass Redirection: Yes
Bass Sync: Yes
ECO Mode: No
Auto Power off: Yes
Sleep Timer: Yes

Inputs Outputs
Composite In / Out: 3+1 / 2
Component In / Out: 3 / 1
HDMI In / Out: 7+1 / 3
Multi-Room Video Out: Video / HDMI: Yes / Yes
Analog In / Out: 5+1 / No
Phono (MM) In: Yes
Digital In: Optical / Coaxial: 2 / 2
Multi-Room Out: analog / digital: 2 / No
Multichannel Pre Out: Yes (11.2 RCA & 11.2 XLR)
Subwoofer Out: 2 (independent)
7.1 multichannel input: Yes
Speaker A / B: assignable pre out
Bi-amp drive: assignable pre out
Multi-Room Speaker Terminal: pre out
Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB: Yes / Yes / No / Yes / Yes
USB Audio / Made for iPod / Made for iPhone: Yes / No / No
AM/FM Tuner: Yes

General
Metal Front Panel: Yes
System Remote Control: RC044SR
Pre-Programmed / Learnable / LCD Display: Yes / No / No
Power Consumption in W: 60
Power Consumption No-Sound (ECO on/off) in W: No
Standby Consumption in W: 0.2
CEC Standby Consumption in W: 0.5
Network Standby Consumption in W: 3.5
Maximum Dimensions Antenna:Horizontal:(W x D x H) in inches: 17.3 x 16.2 x 7.3
Maximum Dimensions Antenna:Vertical :(W x D x H) in inches: 17.3 x 16.2 x 9.7
Maximum Dimensions W/o Antenna:(W x D x H) in inches: 17.3 x 15.8 x 7.3
Weight in lbs.: 22.9
What's in the box: Main unit, remote control, batteries, AM/FM antennas, wire labels, quick start guide, Audyssey microphone, card board microphone stand, 2 External Detachable Antenna, AC cord
Warranty: 3 Years
